Beschreibung
TrueNAS® X-Series Vergleich

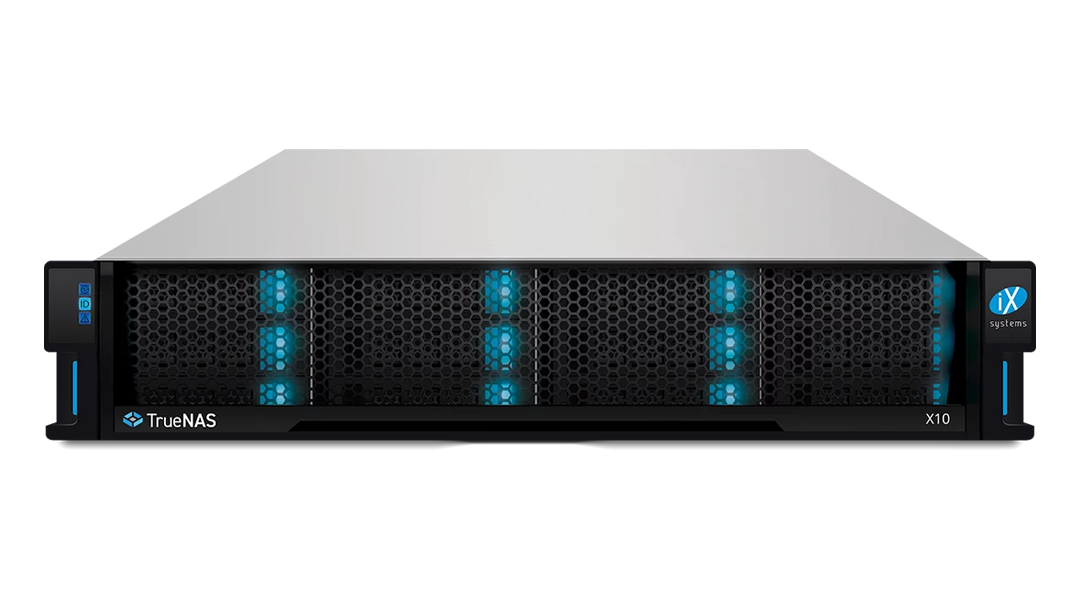

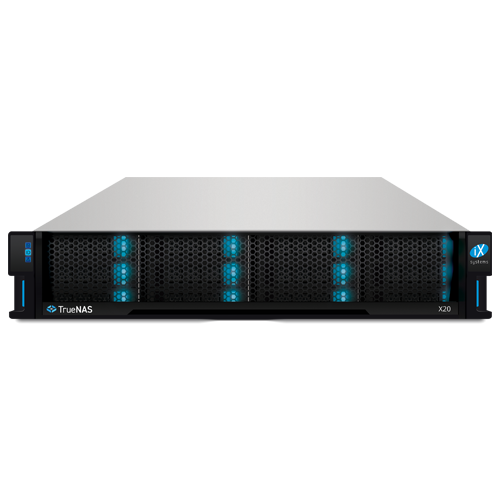

TrueNAS® | X10 | X20 | ||
---|---|---|---|---|
Rack Space | 2U | 2U | ||
Controllers | Single & Dual | Single & Dual | ||
Drive Bays | 12 x 3.5"/2.5" | 12 x 3.5"/2.5" | ||
DRAM per Controller | 32 GB | 64 GB | ||
Max Ethernet Speed | 2x 10GbE | 2x 40GbE | ||
Fibre Channel (option) | 2x 8 Gb | 2x 8 Gb | ||
Expansion Shelves Supported | 1 | 2 | ||
Expansion Shelves | 1x ES24/F or 2x ES12 | 1x ES60 or 2x ES24/F | ||
Max Drives Supported | 36 | 72 | ||
Max IOPS | Varies based on configuration | Varies based on configuration | ||
Max Throughput | 2 GB/s | 5 GB/s | ||
All-Flash | ||||
Max Raw Capacity | 180 TB | 270 TB | ||
Max Effective Capacity* | 600 TB | 1 PB | ||
Hybrid Storage (HDD + Flash) | ||||
Write Cache | SAS SSD | SAS SSD | ||
Max Read Cache | 400 GB SAS SSD | 800 GB SAS SSD | ||
Max Raw Capacity | 648 TB | 1.28 PB | ||
Max Effective Capacity* | 1.62 PB | 3.2 PB | ||
Certifications | Citrix Ready, VMware Ready, Veeam Ready, Asigra Integrated |
